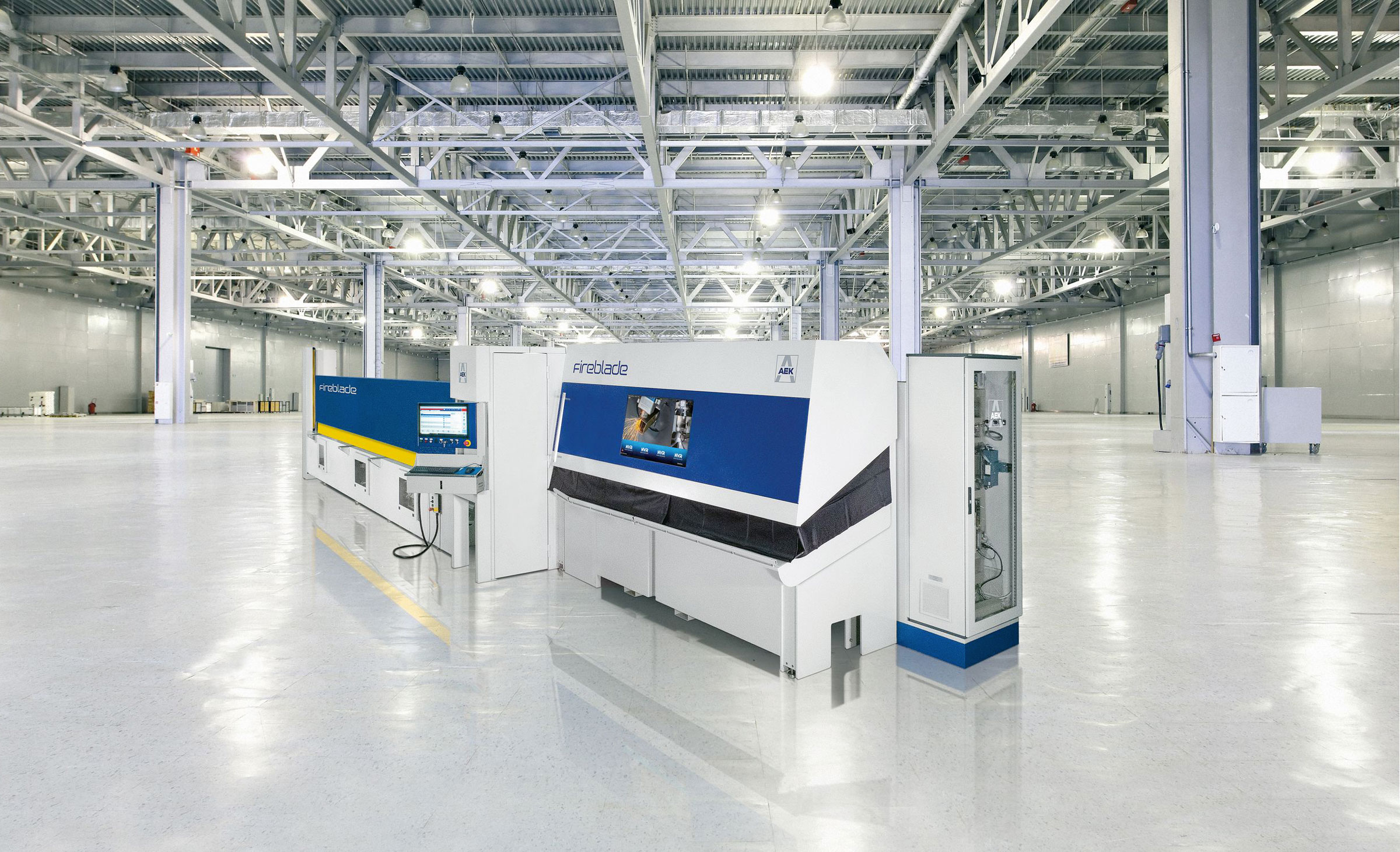

Fireblade is a FIBER LASER tube cutting machine, especially conceived for low and medium thick tubes of different kinds of material. Its innovative, patented technical solutions guarantee high productivity and high quality standards.
INNOVATION

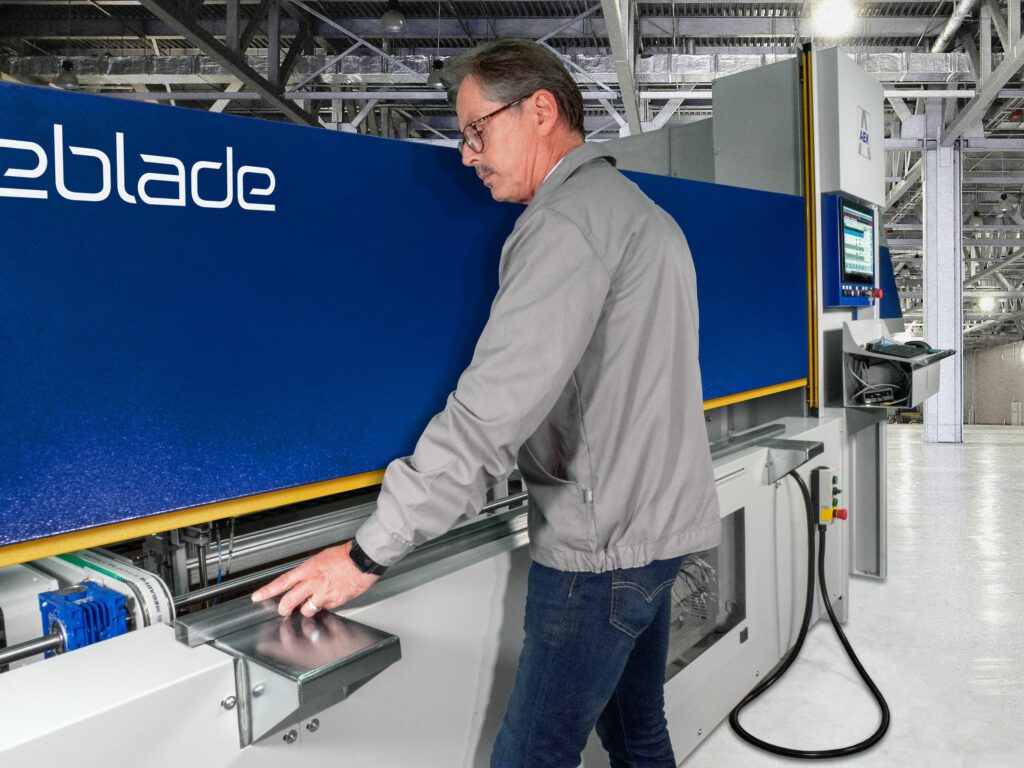

- automatic and manual front loading of the profile
- patented bar-seizing pliers that adapt automatically to the shape and size of the workpiece: square, round, rectangular and special-shaped profiles
- fully enclosed machine equipped with video cameras; live videos and event logs available on-line
- macro for machine setting
- macro for bar-seizing pliers setting

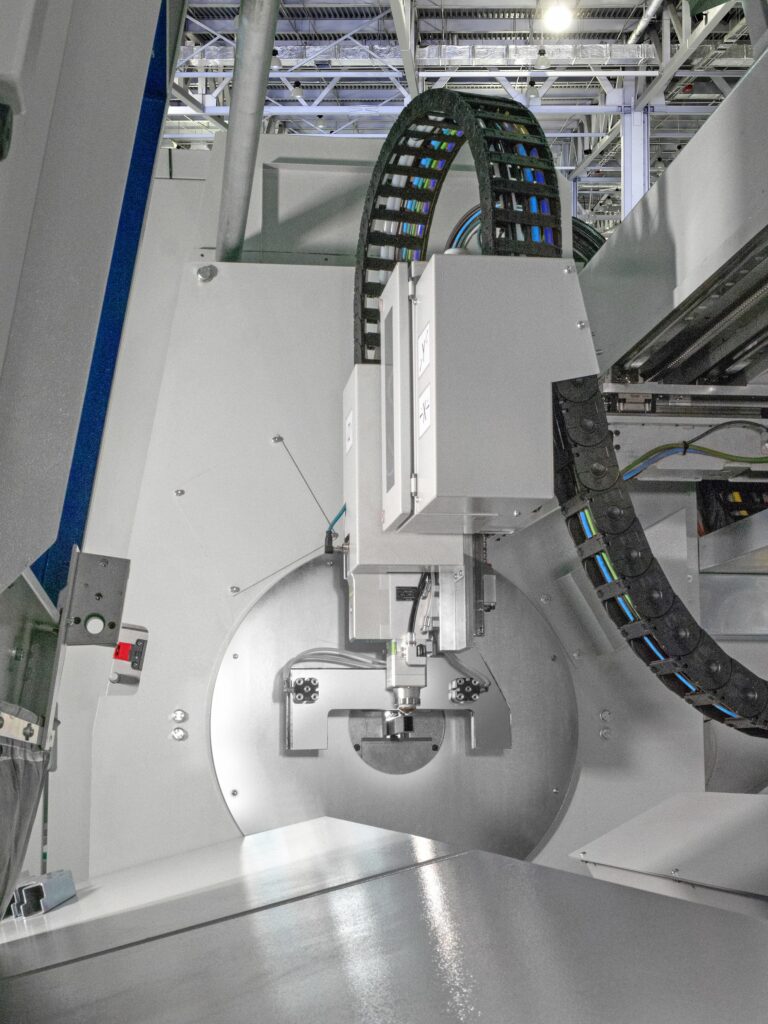

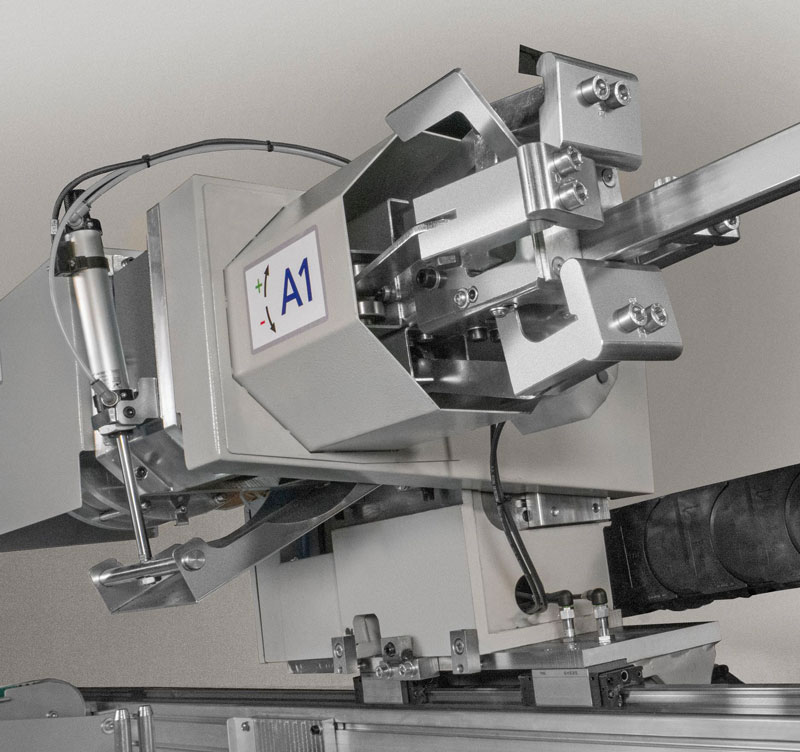

BAR-SEIZING PLIERS
THAT ADAPT AUTOMATICALLY TO THE SHAPE AND SIZE OF THE WORKPIECE: SQUARE, ROUND, RECTANGULAR AND SPECIAL-SHAPED PROFILES

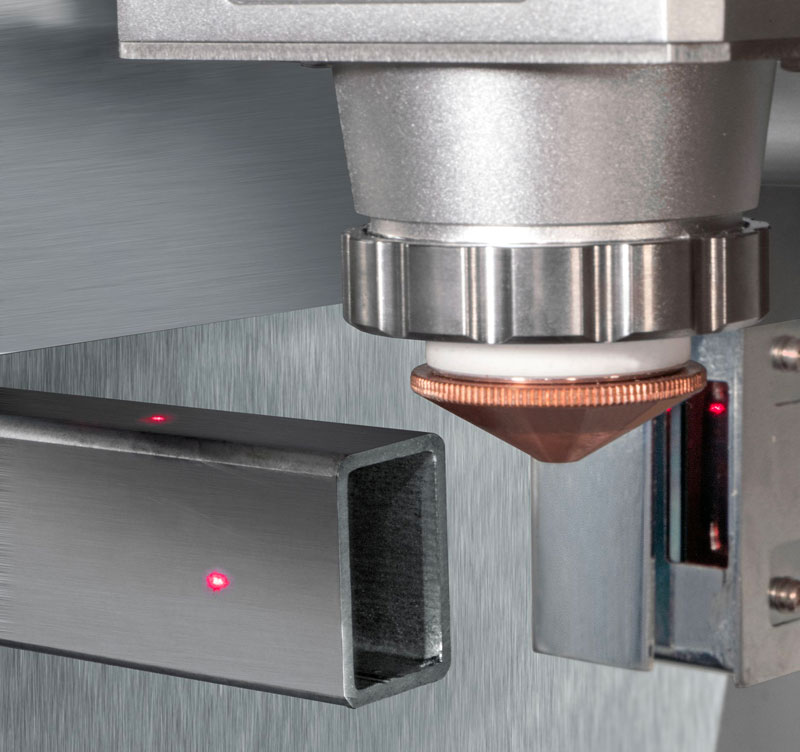

MOBILE LASER SENSORS
THAT MEASURE THE DIMENSIONS OF THE WORKPIECE
POWER/SOURCE/ QUALITY
- 2 kW or more
- assist gas: nitrogen, oxygen/air
- fiber laser resonator from nLIGHT/IPG

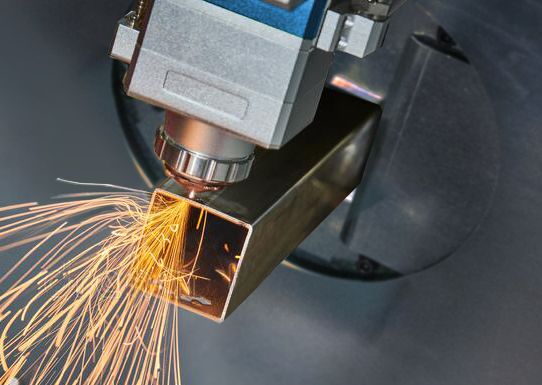

- cutting head: Raytools/Precitec
- EtherCAT protocol for gas pressure setting
- Yaskawa motors
- PLC/CNC I/O Beckhoff EtherCAT
- SigmaTUBE tube cutting software by SigmaTEK
SPEED
- 14 controlled axes brushless motors
- motors with absolute encoders
- double X-axis
- processing speed of the axes: 25 m/min
- rotation speed of the workpiece: 500°/sec

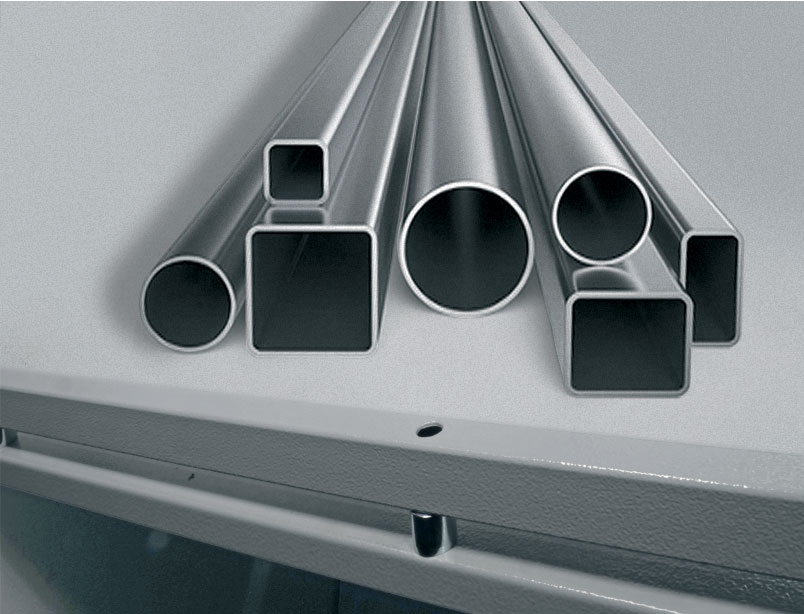

KINDS OF PROCESSABLE WORKPIECE
- rectangular, round, square and special-shaped profiles
- bundles of bars with separators
- bars and bar parts longer than 3 m
LOADING
- manual
- automatic
- automatic bar feeding
- bar orientation recognition
- bar lifting by axes brushless motors
UNLOADING

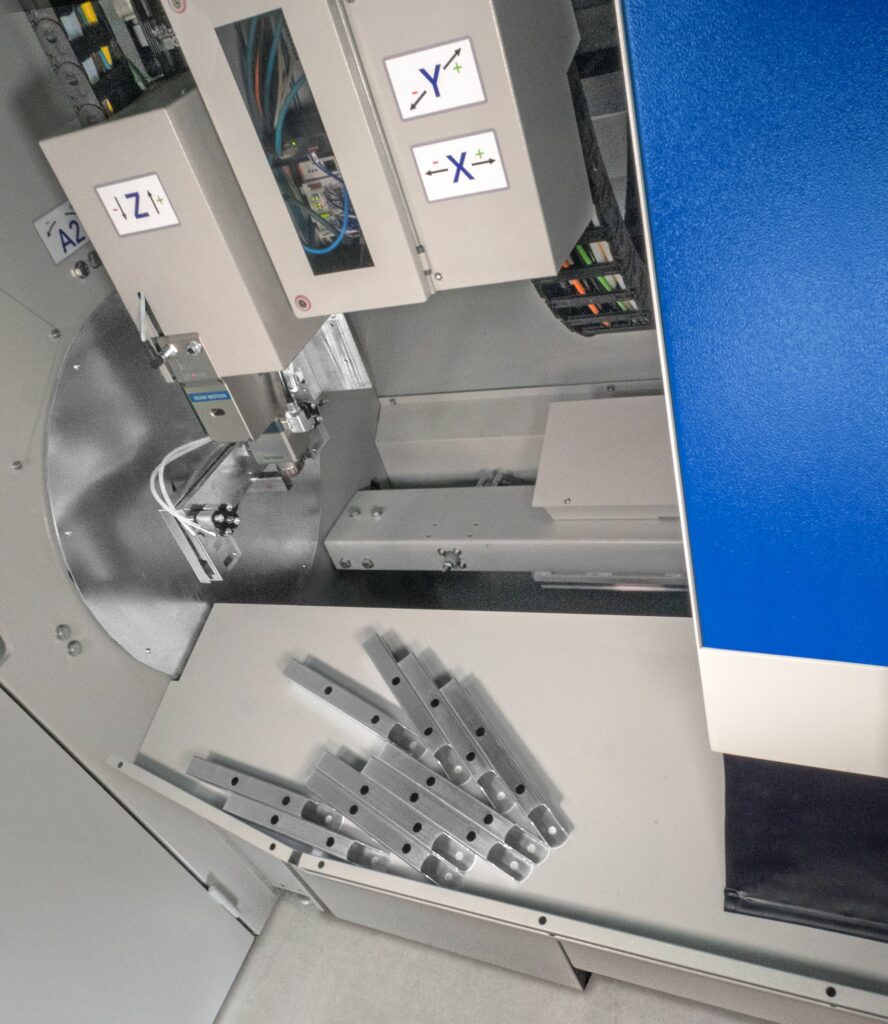

- cutting scrap metal in a box
- short bars in a box
- long bars on a chute
- long bars on a conveyor belt (optional extra)
- long bars on a double conveyor belt (optional extra)
ASSISTANCE
- storage of video cameras footage
- event log with time indicators: errors, warnings
SERVICES
- on-line assistance
- errors analysis
- cutting test
- machine downtime analysis
PRODUCTION

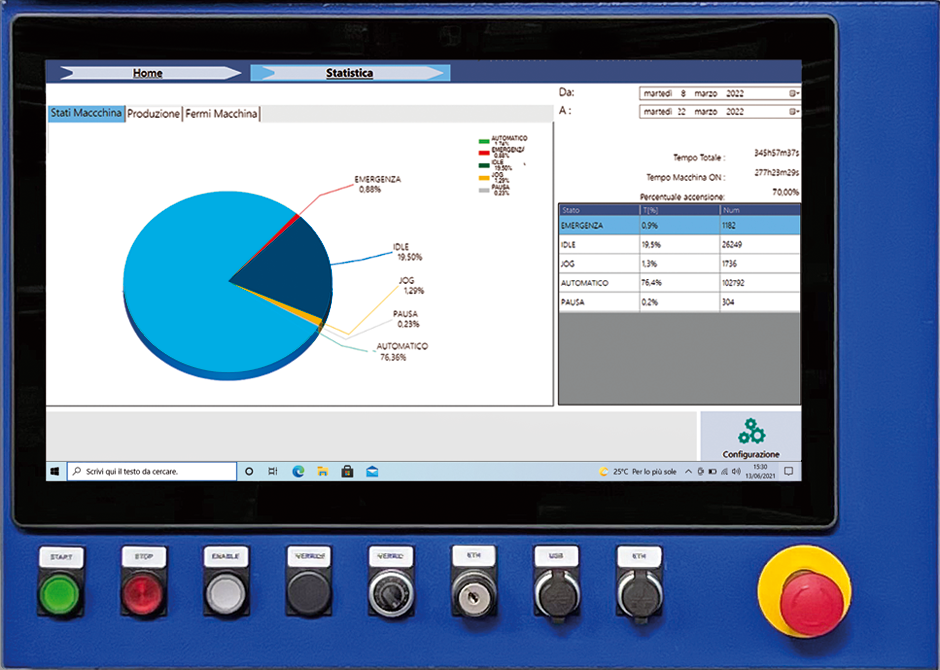

- machine downtime/productivity statistics
- on-line video cameras
UTILITY
- cutting lists importing

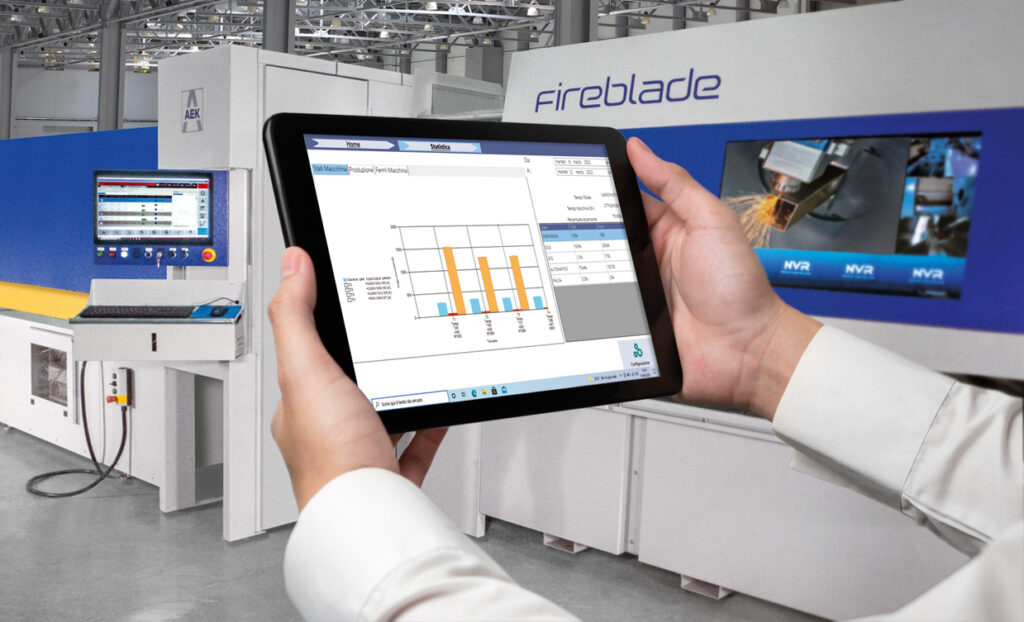

- connection to office PC for remote monitoring and management

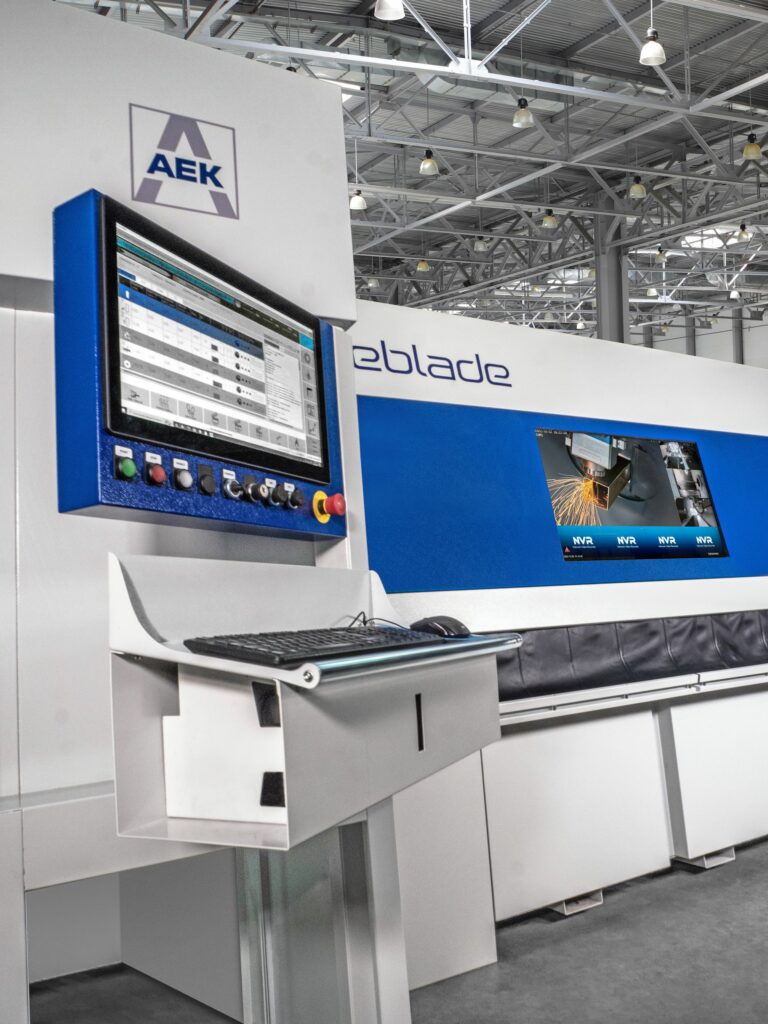

- cutting lists monitoring, management and modifications from on-board console (optional extra)
